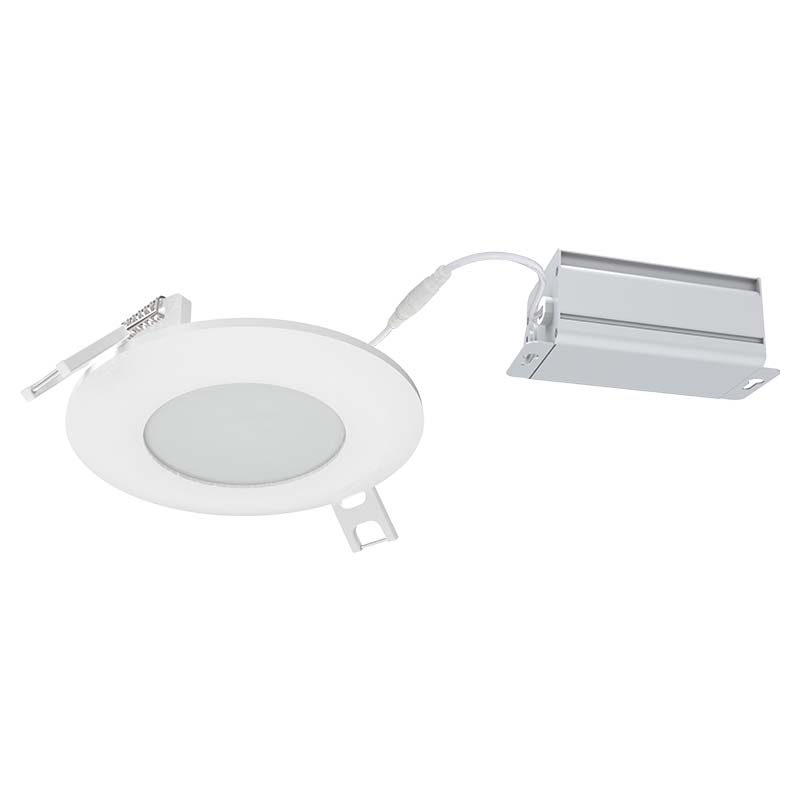

Liteharbor 3 Inch Ultra Thin Round Recessed LED Panel Light
ITEM No.: BL3-301
Power: 6W MAX
Voltage: AC120V±10%
Lumen: 360lm
Power factor: >0.9
CCT: 2700K-6000K
Certification: cETLus
Features
This 3 inch 6W ultra thin recessed LED panel light, is a kind of high performance and easy installation residential downlight, provides smooth and gentle light output, efficient energy saving.
Using two clips to install, easy for installation and saving time, tool-free, no need housing, suitable for 1/2”to 1 1/4” ceiling thickness. Using FT4 cable, with quick anti-pull connecting terminal, good anti-pull performance.
Streamlined panels, the lamp is concise and beautiful.
Dimmable, compatible dimmer, can match the multi-brand dimmer, good dimming effect (stability, no flickering).
New construction is optional.
Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail.
Listing: ETL Listed
Warranty: 3 years
Specification
| Power | 6W MAX |
| Voltage | AC120V±10% |
| Lumen | 360lm |
| Power factor | >0.9 |
| CRI | 80+/90+ |
| Dimmable | None/TRIAC |
| CCT | 2700-6000K |
| Lifespan | 36000H |
| Certification | cETLus |
Lamp Body
Aluminum die casting, high thermal conductivity, superior heat dissipation performance,the lower light decline, prolong the life of lamps, white powder, paint processing, durable and colorfast.
Light Source
Using top brand 2835 SMD LED light source, chip is durable and stability,superior performance and luminous uniform, high lumen, the light color consistency is good, low light decline, long lifespan; Life Rated for 36000 hours at 70% lumen maintenance.
Guide Plate
High quality PMMA acrylic guide plate, the light is downy, luminous evenly without dark space, care of eyes.
Diffusion Plate
Using import high transmittance diffusion plate, to ensure the light uniform, fine and soft, no stimulation, ensure high light effect and prevent dazzle light.
Driver
Independent isolation constant current drive, high power factor optional.
Constant current design, high reliability, stable performance.
Meets the requirements of safety and electromagnetic compatibility.
Packing
Inner box: 125*105*80 MM 1 pcs/Box
Outer box: 39.5*26.5*33 CM 24PCS/CTN
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |  3'' Round Slim Panel Light | liteharbor | 162 KB | 311 |
